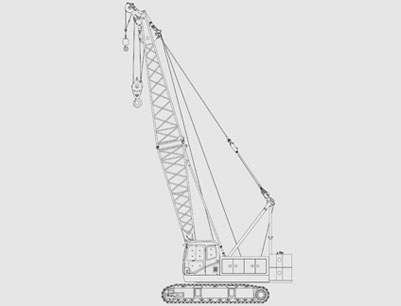

50 Ton Crawler Crane

Max. rated crane capacity	：55T
Main arm length	：13-25m
Range of inclination angle	：30-80°
Max. lifting moment	：203m
The longest main arm +The longest auxiliary arm	：43.00m+15.25m
Angle of main and auxiliary arm	：10°、30°
Working speed
Main/auxiliary hoist rope speed	：0~100m/min
Main luffing winch rope speed	：0~62m/min
Swing speed	：0~3.2rpm
Walking speed	：0~1.39km/h
Engine rated output/Rated speed	：153/2200kw/ rpm
Transportation parameter
Max. single shipping weight	：31T
Transportation size (L×W×H)	：7160mm/3360mm/3260mm
Ground pressure	：0.06mpa
